| ブランド名: | Enerkey |
| モデル番号: | EK-24S20EB |
| MOQ: | 100個 |
| 価格: | $208-$258 |
| パッケージの詳細: | 強い紙ボックス +エヴァフォーム |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |
Enerkey 1A-20A Smart Active Balancer for 12V 24V 36V 48V 60V 72V 3S 4S 7S 8S 13S 16S 20S 24S LiFePo4 Li-ion
Smart Active Balancer Equalizer 24s 12-72volt 20A max - NMC/ LFP - For Lithium Battery Packs
1. This is Lithium Battery Active balancer Equilizer. This balancer unit works on Lithium ion and lithium Phosphet both battery even with prismatic cells also. This balancer can work from 12 volt to 96 volt all range. For lithium ion its 2s to 24s and for lithium Phosphet it will be 4s to 24s Maximum.
2. balancing current is 20amps. Means if you battery is 20AH then it need max 2 hours to full balnace your battery. If its 40ah then max 4 hours. we also provide the connector set so that you can connect the bms wire directly to the BMS Module. We provide APP download file for this balancer and full tutorial of how to use this balancer. This balancer can also detect the error or problem in your battery and inform you through app.
Safety Precautions
Please have the product installed and maintained by professional technicians.
Do not use in flammable or explosive environments.
If any abnormality is detected, please stop using the product immediately and contact the manufacturer.
The product requires regular safety inspections and functional testing.
Package Contents
24S 20A Smart Active Balancer Host ×1
Communication Cable ×1
User Manual ×1
Certificate of Conformity/Warranty Card ×1
Certification Information
CE Certified
RoHS Compliant
Complies with T/CPPC XXXX-2023 Electric Bicycle Battery Balancer Standard
After-Sales Service
1-year warranty
Lifetime technical support
| Product model |
20A Smart Active Balancer for 2-24s (EK-24S20EB) |
||
| Supported battery type |
NCM / LFP/ LTO(Li-ion/Lifepo4/Lto) |
||
| Single cell voltage collection range |
1.5V~4.5V |
||
| Undervoltage protects sleep voltage |
APP can be customized Settings :1.5-4.2V |
||
| Equilibrium method |
Time-sharing single channel transfer, point-to-point energy transfer |
||
| Reverse protection |
Support disorderly power on detection/protection |
||
| Equilibrium current |
APP can be customized Settings: 1A~20A |
||
| Whether an external power supply is required |
Battery-operated(Accuracy:3mV) DC power supply(Accuracy:1mV) |
||
| External power supply |
DC 24-120V |
||
| Voltage equalization accuracy |
APP can be customized Settings :1mV(TYP) |
||
| Power failure detection function |
Support |
||
| Wrong wire protection function |
Support |
||
| Fault alarm function |
Support |
||
| Buzzer |
APP can be customized Settings |
||
| Power dissipation |
At equilibrium≈1W,Stop equilibrium≈0.5W |
||
| Operating temperature |
-20℃ ~ +55℃ |
||
|
Application
|
High-power energy storage, base station backup power supply,Solar power station | ||

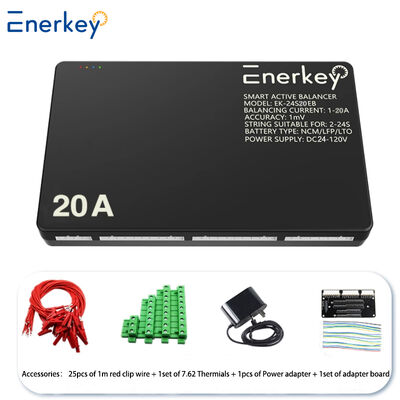

| Part Name | Q'ty |
| 20A Smart Active Balancer | 1pcs |
| 1m 16AWG Clip Wire | 25pcs |
| 3pin 7.62Pitch Thermial | 1pcs |
| 7pin 7.62Pitch Thermial | 1pcs |
| 9pin 7.62Pitch Thermial | 1pcs |
| DC Adapter | 1pcs |
24S Wiring Diagram
EK-24S20EB supports 2S-24S. The following figure shows how to install and connect cables to the 24S battery string:
17S Wiring Diagram
When less than 24 battery strings are connected in series, empty pins are suspended. The following uses 17S as an example.
3S Wiring Diagram
If the battery string has a total voltage lower than 24V, you need to connect 24V to 120V DC power supplies.
The following uses 3S as an example:
40S Cascade Wiring Diagram
EK-24S20EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange".
The following uses the 40S as an example to describe how to install and connect cables:
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international standards certification.
* We can provide you with factory price, Welcome you to visit our factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ino and LTO batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and batches?
*Our minimum order quantity is 1 piece, ODM customization is available.
* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard certification.
* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.
If you have any advices or requests, Warmly welcome your consulting.
|
|
