| ブランド名: | Enerkey |
| モデル番号: | EK-BM3R10S40A |
| MOQ: | 50ピース |
| 価格: | $6.5-$7.2 |
| パッケージの詳細: | 強い紙ボックス +エヴァフォーム |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |

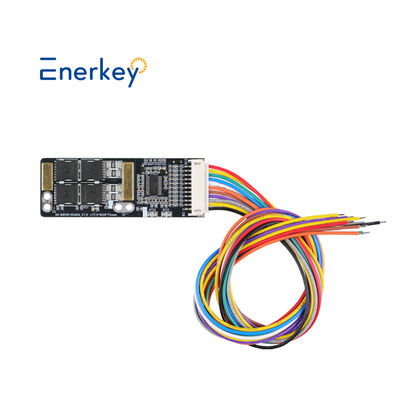

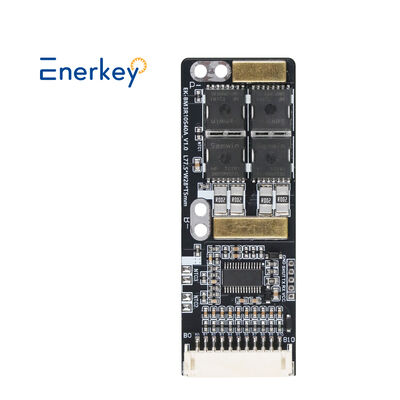

Enerkey 3S-10S 40A Bms Lithium Battery BMS with NTC Li-ion/Lifepo4/Lto/SIB Lithium Battery Protection Board
Product Overview
Enerkey 3S-10S 40A (EK-BM3R10S40A) lithium battery protection board is a safety protection solution tailored for multi-cell lithium battery packs. Utilizing advanced circuit design and intelligent management chips, it provides comprehensive and precise protection for lithium battery packs, effectively extending battery life and ensuring safe use.
Product Features
* Wide Range of Applications: Supports 3S to 10S lithium battery packs, flexibly adapting to battery systems with different voltage requirements. Perfectly compatible with electric bicycles, drones, and energy storage devices.
* Multiple Protection Functions
* Overcharge Protection: When the battery charging voltage exceeds a set threshold, the charging circuit is quickly cut off to prevent overcharging and avoid dangers such as battery swelling, leakage, or even explosion.
* Over-discharge Protection: Monitors the battery discharge voltage in real time. Once it falls below a safe value, the discharge circuit is immediately disconnected to protect the battery from over-discharge and maintain its healthy state.
* Overcurrent Protection: Accurately detects the charging and discharging current. If the current exceeds the rated range, the protection mechanism is activated instantly to prevent battery overheating and damage due to excessive current, ensuring circuit safety.
Short-circuit protection: In the event of a battery short circuit, it can disconnect the circuit in a very short time, preventing serious damage to the battery and equipment from the short-circuit current and ensuring safe use.
High-precision monitoring: Employing high-precision voltage and current detection chips, it can acquire battery status information in real time and accurately, providing reliable data support for the protection functions and ensuring the timeliness and accuracy of protection actions.
Low-power design: While ensuring the normal operation of the protection functions, it greatly reduces its own power consumption, reduces the consumption of battery power, and extends the overall battery life.
High-quality component selection: High-quality electronic components are selected, which have undergone rigorous quality testing and aging tests, exhibiting good stability and reliability, and can operate stably for a long time in various harsh environments.
| Item type | Parameters | |||||||||
| 1 | Parameter Overview | Product Model | EK-BM3R10S40A | |||||||
| Product Size(mm) | L77.5*W28*T5 | |||||||||
| Product Weight(kg) | 0.08 | |||||||||
| Product Material | FR-4 / Lead-free spray tin | |||||||||
| Applicable battery type | Lifepo4 | Li-ion | Lto | SIB | ||||||
| Applicable battery string | 3S - 10S | 3S - 10S | 3S - 10S | 3S - 10S | ||||||
| Rated discharge current | 40A | 40A | 40A | 40A | ||||||
| Peak starting current | 80A | 80A | 80A | 80A | ||||||
| Item type | Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
||
| 2 | Charging protection | Overvoltage protection voltage value | 3.65V/1S | 3.50V/1S | 4.25V/1S | 4.05V/1S | 2.85V/1S | 2.75V/1S | 3.95V/1S | 3.80V/1S |
| Overcurrent value | 40A/2S, disconnect charger to recover | |||||||||
| Low temperature value | Charge over-temperature protection 60℃/2S / Release 55℃/2S | |||||||||
| Overtemperature value | Charging low temperature protection -5℃/2S / Release 0℃/2S | |||||||||
| 3 | Discharge protection | Undervoltage protection voltage value | 2.30V/1S | 2.70V/1S | 2.75V/1S | 3.0V/1S | 1.70V/1S | 1.80V/1S | 1.50V/1S | 2.00V/1S |
| ①Overcurrent protection value | 45A/2S, disconnect load or activate charging | |||||||||
| ②Overcurrent protection value | 80A/0.5S, disconnect load or activate charging | |||||||||
| Short circuit protection value | 100A/128uS, disconnect load or charge activated | |||||||||
| Low temperature value | Discharge over-temperature protection 65℃/2S, release 60℃/2S | |||||||||
| Overtemperature value | Discharge low temperature protection -20℃/2S, release -10℃/2S | |||||||||
| 4 | Others | Standby current consumption | 25uA | |||||||
| Motherboard lock voltage | / | |||||||||
Wiring precautions:
1. Installing the protective board requires a certain amount of technical electronic knowledge.
2. When wiring, first connect the B- wire at the soldering pad position to the total negative terminal of the battery (the B- wire should be soldered to a short and thick wire) and solder the wired terminal to the battery pack first, and then insert the protective plate.
3. The connection between the battery terminal B- and the protection board terminal B- should be short and thick, otherwise it will cause the protection board to charge and discharge in advance and malfunction.
4. You need to use thick wires when wiring P+/P-. Wires that are too thin and too long will burn the board!
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international standards certification.
* We can provide you with factory price, Welcome you to visit our factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ino and LTO batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and batches?
*Our minimum order quantity is 1 piece, ODM customization is available.
* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard certification.
* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.
|
|
