| ブランド名: | Enerkey |
| モデル番号: | EK-B24S8E200A |
| MOQ: | 10個 |
| 価格: | $119.5-$126.5 |
| パッケージの詳細: | 頑丈な紙箱 + EVA 泡 |
| 支払条件: | 信用状、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |

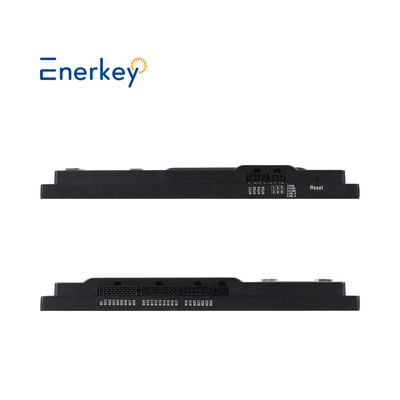

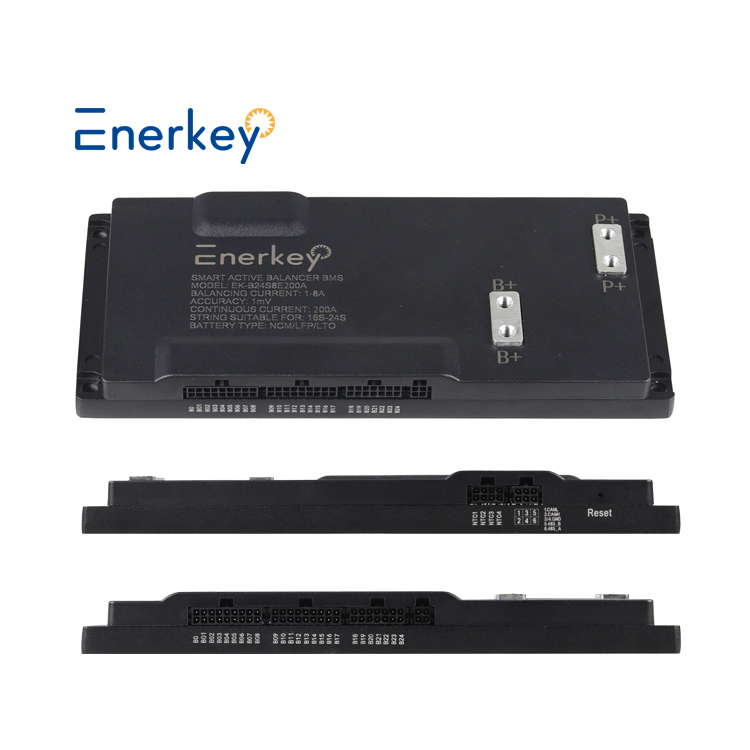

Enerkey Smart BMS 16S-24S 200A with 1A-8A Active Balancing CAN RS485 for Lifepo4/Li-ion/LTO/SIB RV Energy Storage
Smart active balance BMS also has the following characteristics:
Dynamic Balancing: The BMS can monitor the voltage of individual cells within the battery pack and, through controlling the flow of current, achieve a balance in charge and discharge among the battery cells, ensuring consistent state across the entire battery pack.
Real-time Monitoring: The BMS can continuously monitor parameters such as voltage, current, temperature, etc., in real-time to promptly detect and address potential issues with the battery, such as overcharging, over-discharging, or excessive temperatures.
Intelligent Management: BMS is often equipped with intelligent algorithms and control strategies, capable of adaptive management based on the operational state of the battery pack and environmental conditions, enhancing overall performance and lifespan.
Communication Capability: BMS typically includes communication modules allowing data exchange with other systems or devices, enabling remote monitoring and control.
Fault Diagnosis: The BMS can diagnose faults within the battery pack and provide corresponding alarms or protective measures to prevent damage or safety risks.
Energy Efficiency and Emission Reduction: Through efficient battery management and optimization, BMS can effectively improve energy utilization, reduce energy consumption, and contribute to energy efficiency and emission reduction goals.
Scalability: BMS systems are designed to be scalable, accommodating different scales and types of battery packs to meet the requirements of diverse application scenarios.
In summary, an intelligent active balancing BMS, through advanced monitoring, control, and management technologies, enhances the performance, safety, and reliability of battery packs. These characteristics make BMS widely applicable in areas such as electric vehicles and energy storage systems.
| Item | Smart Active Balancer BMS | |||
| Product Model | EK-B24S8E200A | EK-B24S8E250A | EK-B24S8E300A | |
| Product size | L237 x W107 x T24.5(mm) | |||
| Product weight | 1500g | |||
| Single cell voltage collection range | 1.5V～4.5V | |||
| Communication ports | CAN/485 | |||
| Outlet mode | Same ports | |||
| Product material | Aluminum alloy, PC plastic, FR-4/lead-free tin-spraying | |||
| Battery protection parameters | ||||
| Continuous discharge current |
120A Default 15A～200A adjustable |
120A Default 15A～250A adjustable |
120A Default 15A～300A adjustable |
|
| Continuous charge current |
200A Default 15A～200A adjustable |
250A Default 15A～250A adjustable |
300A Default 15A～300A adjustable |
|
| Battery type | NCM | LFP | LTO | |
| Battery string number | 16S～24S | 16S～24S | 20S～24S | |
| Single cell overcharge protection value | 4.200V | 3.650V | 2.700V | |
| Single cell overcharge recovery value | 4.000V | 3.450V | 2.400V | |
| Single cell undervoltage protection value | 2.900V | 2.600V | 1.600V | |
| Single cell undervoltage recovery value | 3.100V | 2.900V | 1.800V | |
| Equalization parameters | ||||
| Active balancing current | 1A～8A(adjustable) | |||
| Balanced voltage accuracy | 1mV(adjustable) | |||
| Start balancing voltage difference value | 0.001V～5.000V(adjustable) | |||
| Stop balancing voltage difference value | 0.001V～5.000V(adjustable) | |||
| Balanced start voltage value | 1.500V～4.500V(adjustable) | |||
| Balanced stop voltage value | 1.500V～4.500V(adjustable) | |||
| Temperature protection parameters | ||||
| Charge over-temperature protection | Default 60℃/30℃～80℃ (adjustable) | |||
| Charge over-temperature recovery | Default 50℃/30℃～80℃ (adjustable) | |||
| Charge low-temperature protection | Default -2℃/-40℃～20℃(adjustable) | |||
| Charge low-temperature recovery | Default 2℃/-40℃～20℃(adjustable) | |||
| Discharge over-temperature protection | Default 60℃/30℃～80℃(adjustable) | |||
| Discharge over-temperature recovery | Default 50℃/30℃～80℃(adjustable) | |||
| Discharge low-temperature protection | Default -10℃/-40℃～20℃(adjustable) | |||
| Discharge low-temperature recovery | Default -5℃/-40℃～20℃(adjustable) | |||
Precautions:
①. Installing the protection equalization board requires a certain amount of electronic knowledge.
②. Welding the cable: The first cable (black line) is connected to the total negative pole of the battery, the second cable (red line) is connected to the positive pole of the first battery string, and the third cable (red line) is connected to the positive pole of the second battery string... and so on, connect all the cables;
③. Detect the cable: After connecting the cable, measure the voltage between two adjacent cables from the head of the cable to confirm that there is no problem of wrong connection or missing connection in the welding sequence of the cable.
④. Connect the B+ line of the protection board to the total positive pole of the battery, and then connect the sampling cable plug to the protection board. After activating the protection board, confirm that the voltage before the board (battery voltage B+.B-) and the voltage after the board (P+.P-) are consistent.
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international standards certification.
* We can provide you with factory price, Welcome you to visit our factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ion and LTO and SIB batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and batches?
*Our minimum order quantity is 1 piece, ODM customization is available.
* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard certification.
* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.
If you have any advices or requests, Warmly welcome your consulting.
|
